3C3 Series

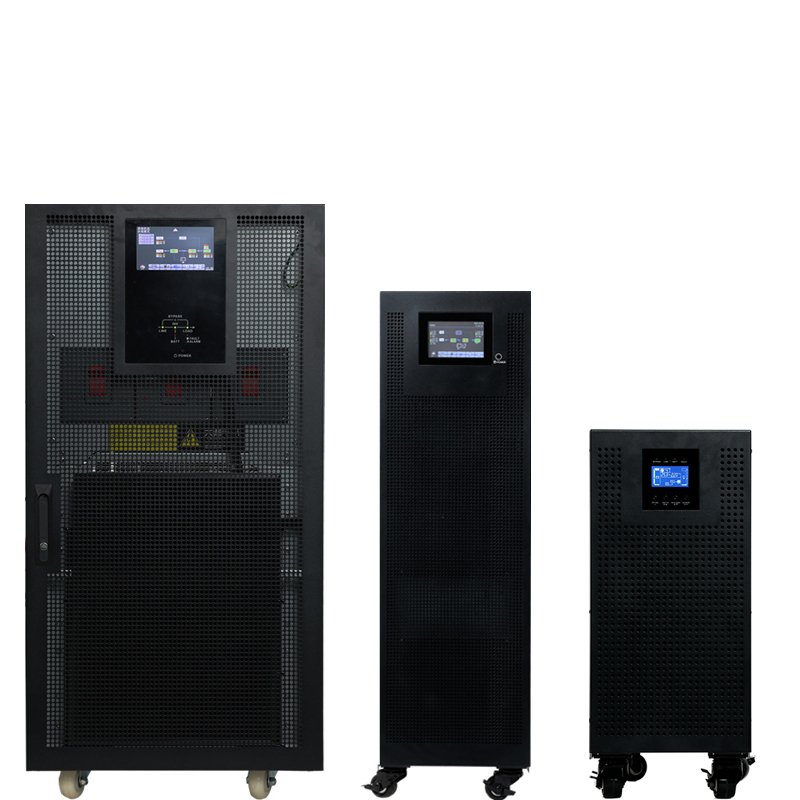

3C3 Series Three Phase High Frequency UPS10KVA – 200KVA
Three-phase input and output UPS with pure sine wave output and external lead-acid batteries.
Pure Sine Wave
LCD Display
Three Phase
External Batteries
Key Features
Pure Sine Wave
Pure sine wave output with 0 ms transfer time.
LCD Display
Multifunction LCD status display and control panel.
External Batteries
External lead-acid batteries with model-specific battery quantities.
Tower Installation
Tower chassis across the 10–200kVA range.
Standard Interfaces
RS232 and USB communication interfaces supplied as standard.
Product Overview
The 3C3 Series provides three-phase high frequency UPS solutions from 10kVA to 200kVA. All models use tower installation and external lead-acid batteries.
Compare the complete range below. Rated power, charging current, battery quantity, efficiency and physical specifications vary by model.
Downloads
Product Brochure
Coming SoonUser Manual
Coming SoonTechnical Specifications
Compare all 3C3 Series models at a glance.
External Battery UPS
Swipe horizontally to compare all models.
| Parameter | 3C3 10KL | 3C3 20KL | 3C3 30KL | 3C3 40KL | 3C3 60KL | 3C3 80KL | 3C3 100KL | 3C3 120KL | 3C3 180KL | 3C3 200KL |
|---|---|---|---|---|---|---|---|---|---|---|
| General | ||||||||||
| Rated capacity / power | 10KVA / 9KW | 20KVA / 18KW | 30KVA / 30KW | 40KVA / 40KW | 60KVA / 60KW | 80KVA / 80KW | 100KVA / 100KW | 120KVA / 120KW | 180KVA / 180KW | 200KVA / 200KW |
| Installation | Tower | |||||||||
| Input | ||||||||||
| Wiring | L1+L2+L3+PE+N | |||||||||
| Minimum transfer voltage | 110 VAC (Ph-N) ±3% at 50% load; 176 VAC (Ph-N) ±3% at 100% load | |||||||||
| Minimum restoration voltage | Minimum transfer voltage + 10 V | |||||||||
| Maximum transfer voltage | 300 VAC (L-N) ±3% at 50% load; 276 VAC (L-N) ±3% at 100% load | |||||||||
| Maximum restoration voltage | Maximum transfer voltage − 10 V | |||||||||
| Input frequency | 46–54 Hz (50 Hz system); 56–64 Hz (60 Hz system) | 40–70 Hz | ||||||||
| Input power factor | 0.99 at 100% load | |||||||||
| Output | ||||||||||
| Wiring | L1+L2+L3+PE+N | |||||||||
| Output voltage | 360/380/400/415 VAC (Ph-Ph) | 380/400/415 VAC (Ph-Ph) | ||||||||
| Voltage regulation (battery mode) | ±1% | |||||||||
| Frequency synchronization range | 46–54 Hz or 56–64 Hz | |||||||||
| Output power factor | 0.9 | 1 | ||||||||
| Harmonic distortion | ≤2% THD (linear load); ≤5% THD (nonlinear load) | |||||||||
| Transfer time | 0ms | |||||||||
| Waveform | Pure sine wave | |||||||||
| Overload capacity | 100–110%: 10 min; 110–130%: 1 min; >130%: 1 s | 100–110%: 60 min; 110–125%: 10 min; 125–150%: 1 min; >150%: immediate protection | 100–110%: 10 min; 110–130%: 1 min; >130%: 1 s | 105–110%: 60 min; 110–125%: 10 min; 125–150%: 1 min; >150%: 200 ms | ||||||
| Battery | ||||||||||
| Battery type | Lead-acid battery | |||||||||
| Charging current | 4.0 A ±10% | 1–12 A ±10% (default 1 A) | 1–18 A ±10% (default 1 A) | 2–24 A ±10% | 2–36 A ±10% (default 2 A) | 3–54 A ±10% (default 3 A) | ||||
| Battery quantity | 16–20 batteries (adjustable) | 32–40 batteries (adjustable) | ||||||||
| Efficiency | ||||||||||
| Mains power mode | >90.5% | >91.5% | >95.5% | |||||||
| Battery mode | >87% | >88% | 94.5% | |||||||
| Communication | ||||||||||
| Standard interfaces | RS232 / USB | |||||||||
| Control panel | Multifunction LCD status display and control panel | |||||||||
| Environment | ||||||||||
| Operating temperature | −15–55°C | |||||||||
| Operating humidity | 0–95% RH (non-condensing) | |||||||||
| Noise at full load (1 m) | <60 dB at 1 m | <65 dB at 1 m | <70 dB at 1 m | <75 dB at 1 m | ||||||
| Physical | ||||||||||
| Dimensions (L × W × H) | 592 × 250 × 576 mm | 815 × 300 × 1000 mm | 739 × 360 × 1010 mm | 1000 × 430 × 1200 mm | 1000 × 600 × 1200 mm | |||||
| Net weight | 38 kg | 40 kg | 74 kg | 54 kg | 87 kg | 112 kg | 200 kg | 265 kg | ||
